Lightweight Abrasive Rail Saw Rail Cutting Machine
Product ID: 19
Price: $2600
+ Shipping Charges
Product Description

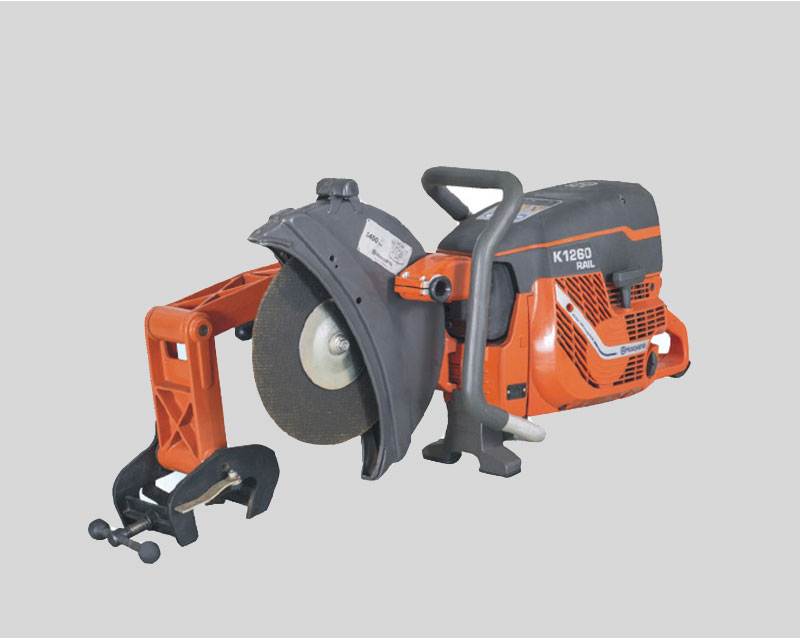

​Lightweight Abrasive Rail Saw

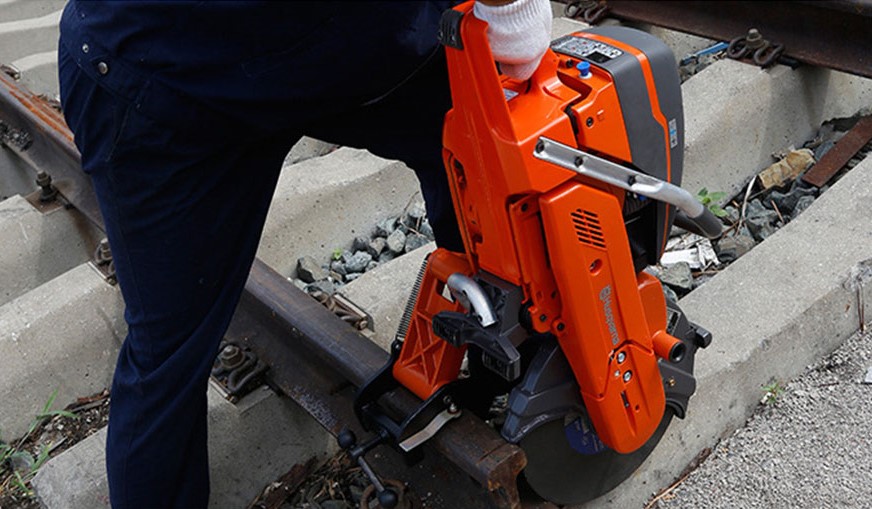

NQG-5.8 lightweight abrasive rail saw is a railway maintenance tool. It not only cuts rails with high speed and high quality, but also has low wear cutting discs. It is locked by rail clamps. It has a simple structure, light weight, safety and easy movement. It is suitable for maintenance, repair of broken rails of seamless tracks, and cutting of steel rails in long rail welding factories.
BENEFITS
â— Adopt K 1270Rail single-cylinder air-cooled two-stroke petrol engine
imported from Sweden
â— Rail cutting mechanism and rail clamp swing arm can be separated or assembled in short time

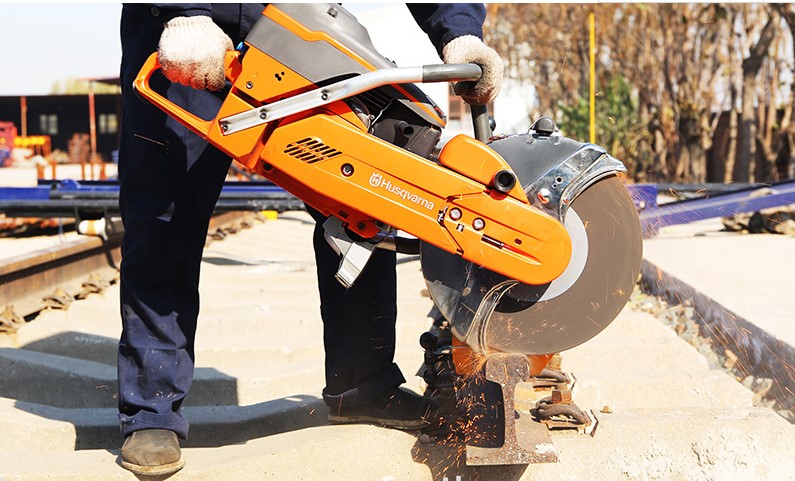

â— The petrol engine drives the cutting disc to rotate through the belt to
complete the rail cutting function
â— It can cut rails of 43~75kg/m rail on or under the line
â— Anti-loose and fall off device is provided on the rail hook
â— Adopt K 1270Rail single-cylinder air-cooled two-stroke petrol engine
imported from Sweden
â— Rail cutting mechanism and rail clamp swing arm can be separated or assembled in short time
â— The petrol engine drives the cutting disc to rotate through the belt to
complete the rail cutting function
â— It can cut rails of 43~75kg/m rail on or under the line
â— Anti-loose and fall off device is provided on the rail hook
Specification
|
Item
|
Value
|
|
Dimensions (L x W x H) (mm)
|
800*560*500mm
|
|
Place of Origin
|
China
|
|
Engine
|
Single-cylinder, air-cooling
|
|
two-stroke petrol engine
|
|
|
(imported from Sweden K1270R) 5.8 kW
|
|
|
Cutting disc form
|
Double- layer reinforced wire mesh
|
|
Linear speed of cutting disc
|
100 m/s
|
|
Rated RPM
|
≥4500 r/min
|
|
Specification of cutting disc
|
φ355*φ25.4 *3.8mm
|
|
Cutting accuracy
|
Vertical deviation of notch and rail≤0.30mm
|
|
Deviation of bidirectional cutting interfaces≤0. 35mm
|
|
|
Weight
|
50kg
|
|
Cutting time
|
≤110s( cut off 60kg/m rail)
|
|
Fuel tank capacity
|
1.25 L
|
|
Dimensions
|
850*480*500mm
|
Packing & Delivery
wooden box, export standard
Company Profile
Xiangyang Lianjie Mechanical&Electrical Co.,Ltd established in 2013,We are the leading manufacturer of the geometry measurement systems for railway which are being used all over the world and also we are the only approved organisation to be accredited by all the user Railways across the world for the supply of these coupler.The Couplers are manufactured keeping in view the stringent quality requirement and with utmost care and dedication to suit the requirements of our esteemed buyers all over the world .
